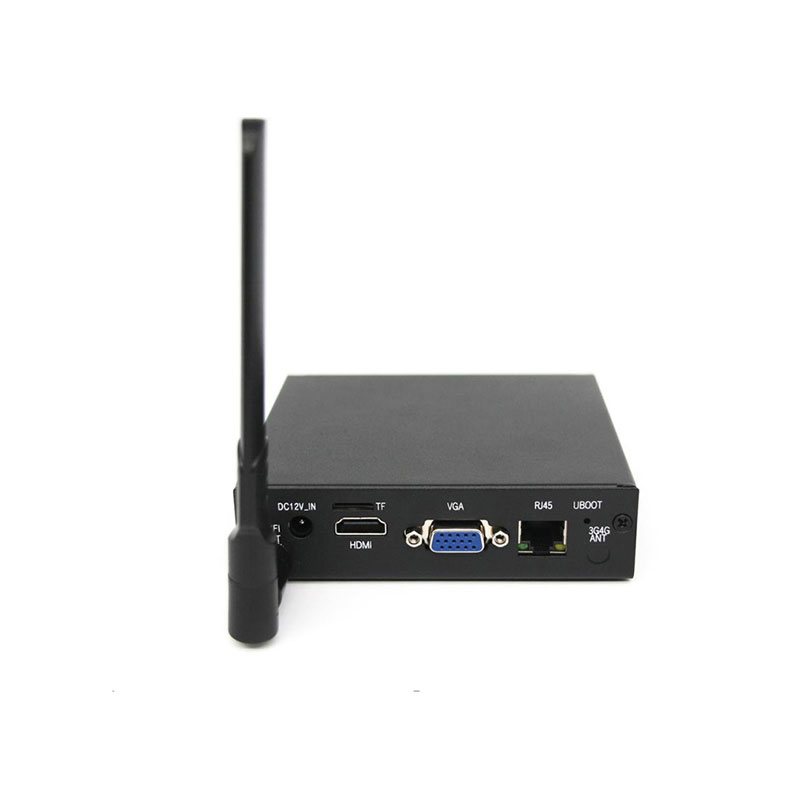

M3399 commercial box, using RK3399 (double Cortex-A72 large core + four Cortex-A53 small core) six-core 64-bit super CPU, equipped with Android7.1 system, the main frequency of up to 1.8 GHz.Support for 4 K, H. with Mali-T864 GPU,265 Hard decoding.The box itself can choose the 16-64GB EMMC; interface, integrated VGA, Ethernet, HDMI, WIFI, Bluetooth, 4G.
Product Features
◆RAM and R OM. can be configured for customer needs
◆Support for 12V power input.
◆Support for HDMI and VGA dual-screen 1080P display, single-screen maximum support of 3840x2160 of 4K decoding, support for HDMI 4K point screen.
◆Can support dual network port, built-in PCI-E 4G interface.Support Huawei, ZTE, Longshang and other PCI-E 4G modules, support the Internet and call.

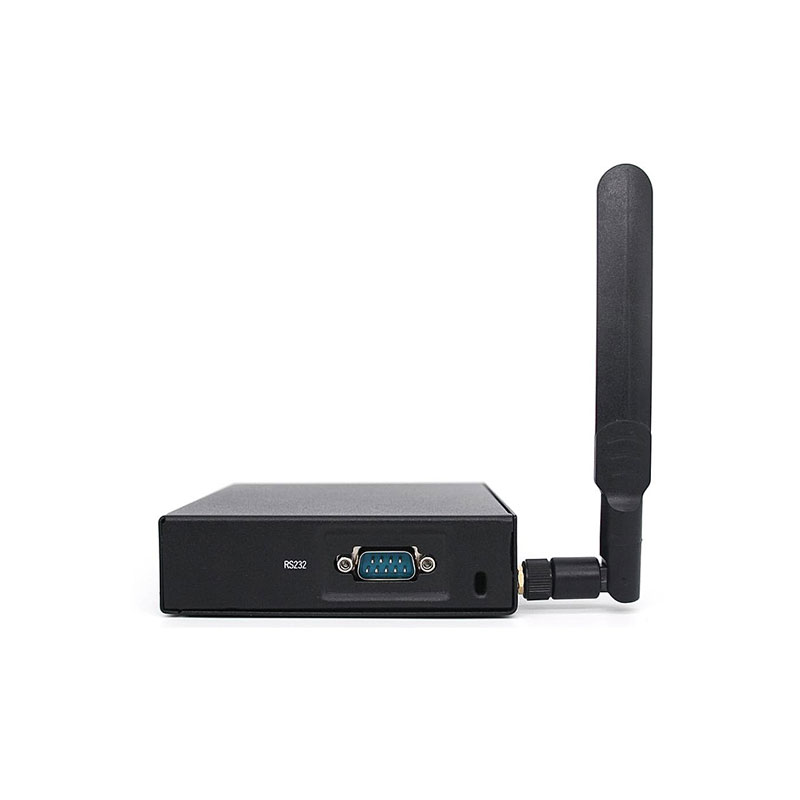

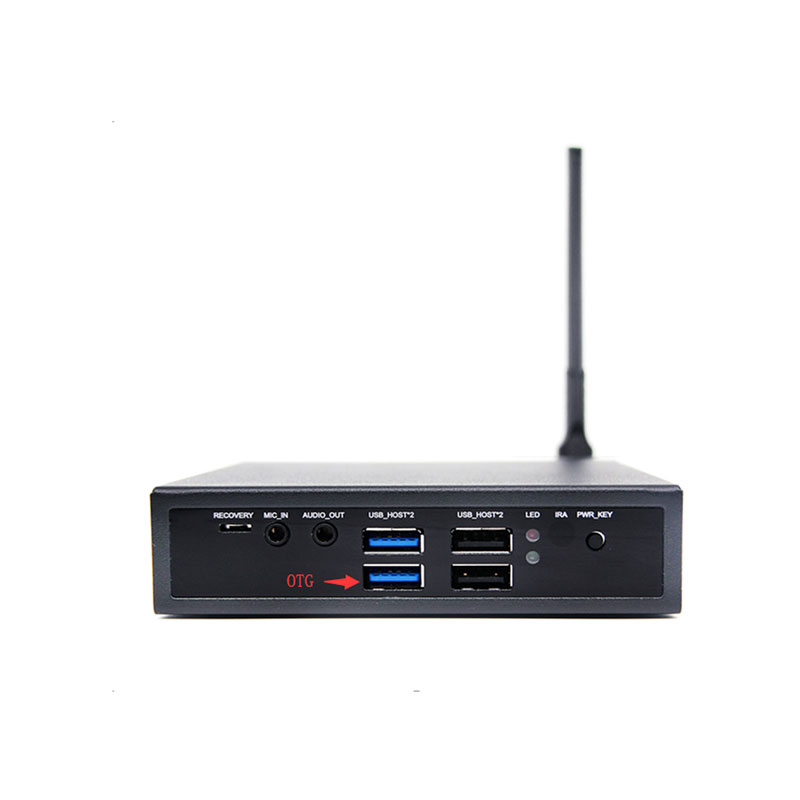

◆Rich extended interface, 4 USB interfaces (2 U SB 3.0 of 1 is OTG,2 USB 2.0); 1-way R S232 serial port (D B9 header).
◆Multiple feature buttons (1 power button, 1 upgrade uboot button, 1 customizable
◆Support Android system customization, provide system call interface API reference code, perfect support for customer upper-level application APP development.
◆Perfect support for infrared, optical, capaciance, resistance, touch film and other mainstream touch screens, support for mainstream peripheral drive, without debugging.
Main hardware indicators | |
Size of the whole machine | 105*115*30mm |
CPU | RK3399, is six-core with a main frequency of 1.8GHz,Android 7.1 |
GPU | Mali-T 864 GPU High-performance GPU |
Memory / Storage | Standard 4G/ Standard 16G (32 / 64G optional) |
Built-in ROM | 2KB EEPROM(is not taken by default, optional) |
VGA output | One, supporting 1080 P output |
HDMI output | One, supporting 1080 P @120Hz,4kx2k@60Hz output |
Video format support | Support for wmv, avi, f lv, rm, rmvb, mpeg, ts, mp4 et al |
Photo format support | Support for BMP, JPEG, PNG, GIF |
Headphone output | Support three headphone insertion all the way |
Audio input | Support for all-way MICIN |
USB interface | 2 USB3.0,2 USB2.0, |
String mouth | 1 standard DB9 interface |
Ethernet | One, 10 / 100 M/1000M Adaptive Ethernet |
WIFI、BT | Built-in WIFI,BT4.1 |
3G/4G | Built-in PCI-E interface, supports 4G Internet access and call |
TF card | Support TF cards |
The RTC real-time clock | Support |
Timed switch machine | Support |
System upgrade | Support for local TF,USB upgrades |
Relative humidity | ≤80% |
Working temperature | 0℃~+60℃ |
Storage temperature | -20℃~+70℃ |
