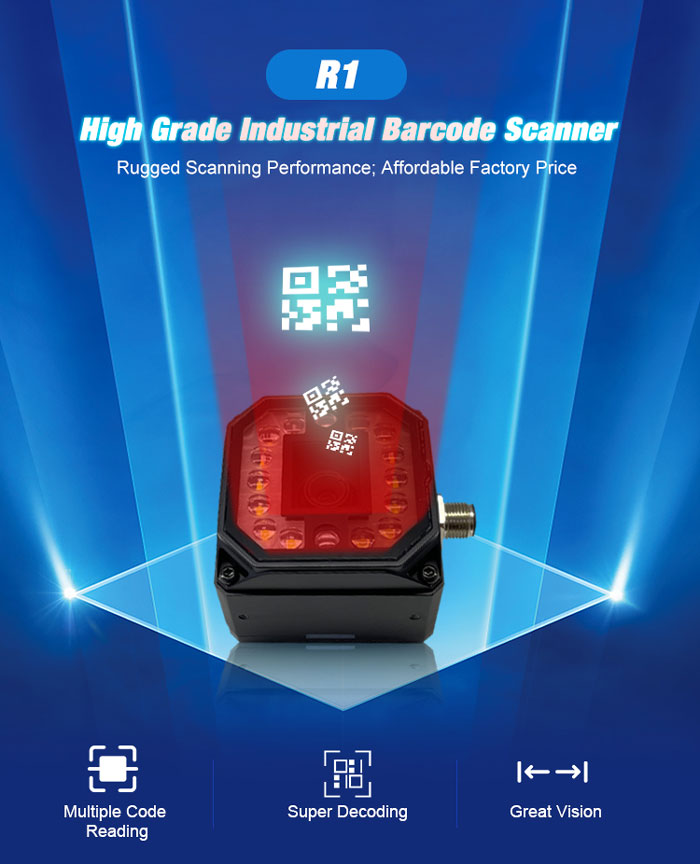

R1 Industrial Multiple Datamatrix Barcode Scanner

Model

R1 Series

Image Sensor

1280 × 1024  CMOS

Performance  Characteristics

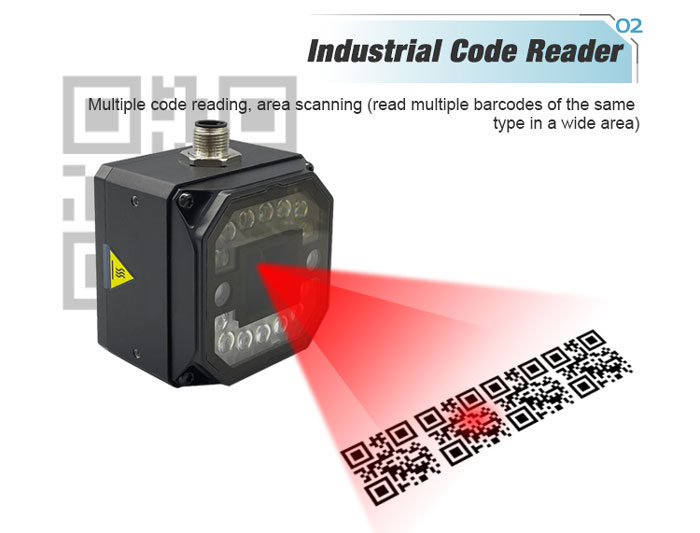

Decode Capabilities

1D：Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25,Matrix 25, MSI, China Post, Code 11 and Industrial 25

2D: QR Code, Data Matrix, PDF 417

Max. Frame Rate

60 fps

Max. Reading Speed

80 codes/sec

Sensor Type

CMOS ，global shutter  3.2 µm × 3.2 µm

Pixel Size

3.45 µm×3.45 µm

Sensor Size

1/2.9”

Exposure Time

16 μs ~ 1 sec

Gain

0 ~ 40 dB

Resolution

1D 3mil;    2D 5mil

Communication   Protocol

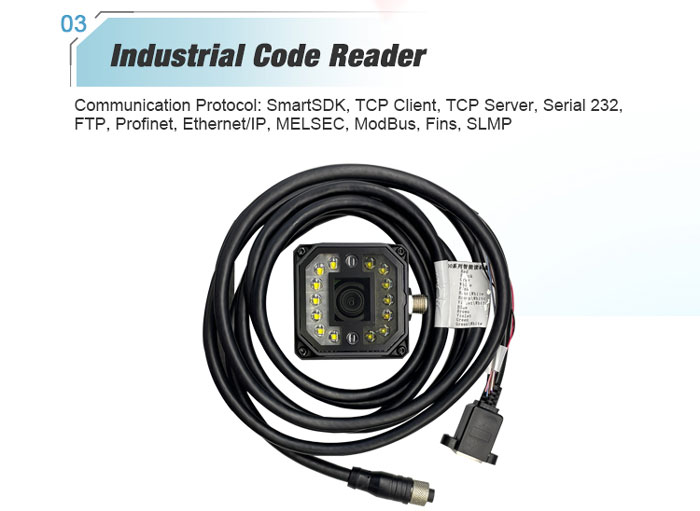

SmartSDK，TCP Client ，Serial， FTP ，TCP Server， Profinet， MELSEC， Ethernet/ IP， ModBus， Fins ，SLMP

Electrical  Feature

 Interface

17-pin M12 connector provides power and I/O, including non-isolated input (Lineln 0/1/2) x 3, non-isolated output (LineOut 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.

Data Interface

Fast Ethernet（ 100 Mbit/s）

Digital l/O

Including non-isolated input (Lineln 0/1/2) x 3, non-isolated output (LineOut 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.

Power  Supply

12 ~ 24 VDC

Max. Power Consumption

20 W@24 VDC（ (light source enabled)）

User Environment

Typical Depth of Field

06mm： 46*38；   12mm： 24*20；15mm： 20*16

Lens Interface

M12-mount ，Manual focus

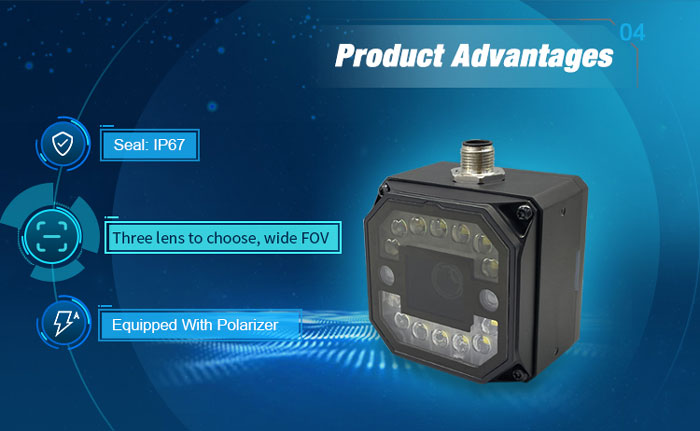

Light Source

6 independent control channels, totaling 14 white lights, half with polarizing lens cover

Light Source

Spotlight white light, available for purchase with spotlight red/blue light, wide-angle white/blue light

Indicator Light

Powerindicator(PWR),network indicator (LNK),status indicator(STS),result indicator (OK/NG)

Dimension

65.2 mm×65.2mm×47.2mm

Weight

Approx. 280 g (0.6 lb.)

Seal

IP67

Operating  Temp.

0℃~+50℃

Storage  Temp.

-30℃~+70℃

Humidity

20% to 95% RH,non-condensing

Regulatory

CE,FCC.RoHS
