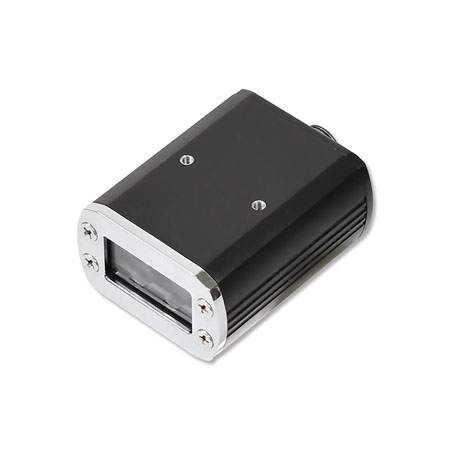

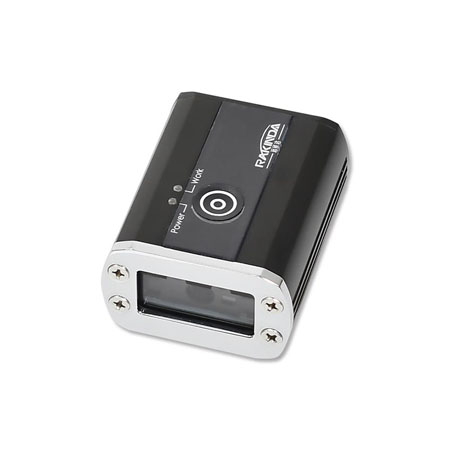

R2 Stationary Industrial Barcode Scanner With Ethernet

Share :
  • Product Description
  • Product Parameters
  • Download

The R2 Series barcode scanner harnesses the power of advanced deep learning algorithms to deliver unparalleled code reading accuracy and reliability across a wide range of industrial applications. Featuring a high-resolution CMOS global shutter sensor, this industrial barcode reader captures sharp, clear images even under challenging conditions, ensuring consistent and efficient performance.



Features of the R2 Series Barcode Scanner with Ethernet Port

High-Resolution CMOS Image Sensor: The R2 Series is equipped with a cutting-edge 2368 × 1760 CMOS image sensor, ensuring superior image quality for precise barcode scanning. This feature is crucial for applications that require detailed image capture for accurate decoding.

Advanced 1D and 2D Barcode Decoding: The R2 Series offers robust decoding capabilities for both 1D and 2D barcodes, including popular symbologies like Code 39, Code 128, EAN 13, and QR codes. This makes it ideal for industries that demand versatile barcode scanning solutions.

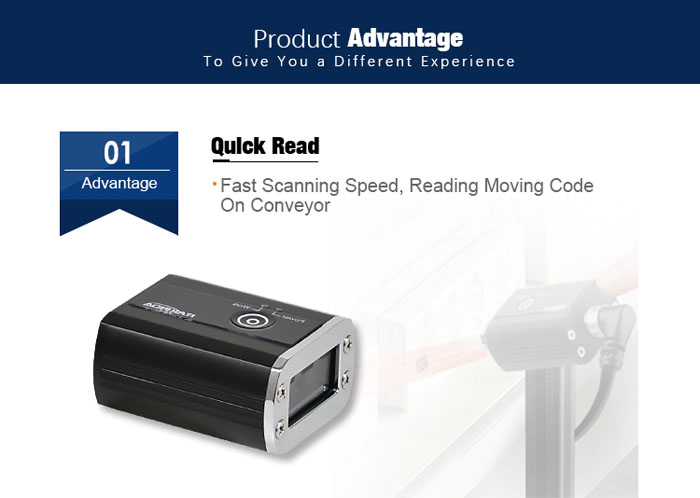

High Frame Rate and Fast Reading Speed: With a frame rate of up to 30 frames per second, the R2 Series can scan and decode up to 60 barcodes per second, significantly boosting productivity in high-throughput environments.

CMOS Global Shutter Technology: The integrated CMOS global shutter sensor ensures clear, distortion-free images, even in fast-moving or low-light environments. This feature is essential for applications where motion blur or poor lighting conditions could compromise barcode readability.

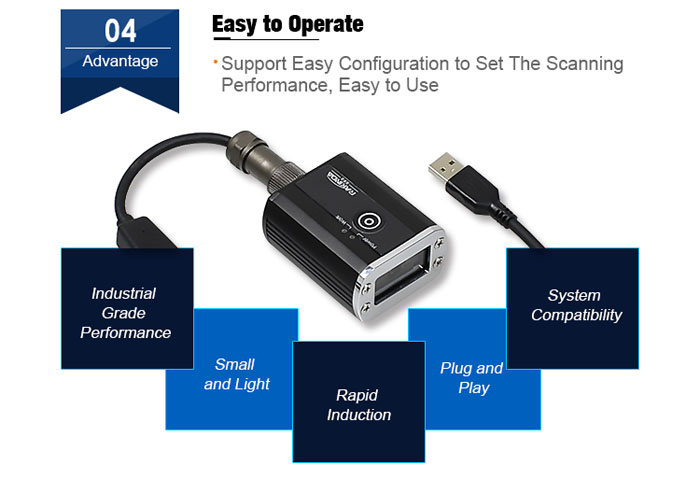

Customizable and User-Centric Design: The R2 Series barcode scanner offers a range of customizable options to suit specific business requirements. It features a user-friendly LCD display and audible feedback for seamless operation. Additionally, the device supports remote In-Application Programming (IAP) upgrades, allowing for easy system updates. The R2 Series also offers various lens options and light sources.




R2 Stationary Industrial Barcode Scanner With EthernetR2 Stationary Industrial Barcode Scanner With EthernetR2 Stationary Industrial Barcode Scanner With EthernetR2 Stationary Industrial Barcode Scanner With EthernetR2 Stationary Industrial Barcode Scanner With EthernetR2 Stationary Industrial Barcode Scanner With Ethernet

Model

R2 Series

Image Sensor

2368 × 1760 CMOS

Performance  Characteristics

Decode Capabilities

1DCode 39, Code 93, Code 128, Code Bar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25,

Matrix 25, MSI, China Post, Code 11 and Industrial 25

2D QR Code, Data Matrix, PDF 417

Max. Frame Rate

30 fps

Max. Reading Speed

60 codes/sec

Sensor Type

CMOS global shutter  3.2 µm × 3.2 µm

Pixel Size

3.2 µm × 3.2 µm

Sensor Size

1/ 1.7”

Exposure Time

16 μs ~ 1 sec

Gain

0 ~ 18 dB

Resolution

1D 3mil;    2D 5mil

Communication Protocol

Smart SDKTCP Client Serial FTP TCP Server Profinet MELSEC Ethernet/ IP ModBus Fins SLMP

Electrical  Feature

 Interface

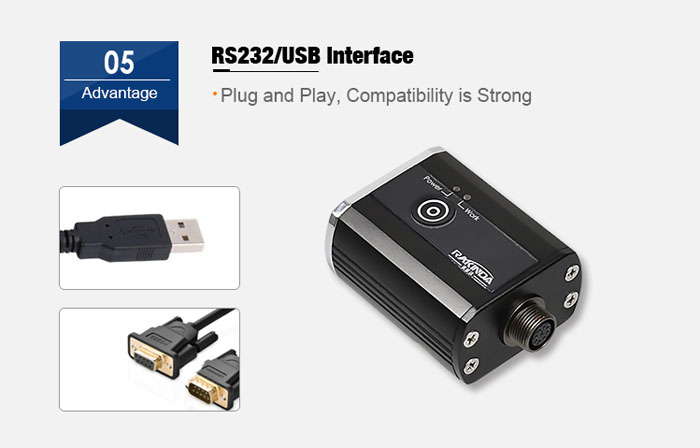

17-pin M12 connector provides power and I/O, including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.

Data Interface

Fast Ethernet 100 Mbit/s

Digital l/O

Including non-isolated input (Line ln 0/1/2) x 3, non-isolated output (Line Out 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.

Power  Supply

12 ~ 24 VDC

Max.Power Consumption

48W@24 VDC (light source enabled)

User Environment

Typical Depth of Field

08mm:51*39;   12mm: 34*26;   16mm: 27*20

Lens Interface

M12-mount Manual focus

Fill Light

6 independent control channels, totaling 14 white lights, half with polarizing lens cover

Light Source

Spotlight white light, available for purchase with spotlight red/blue light, wide-angle white/blue light

Indicator Light

Power indicator(PWR),network indicator (LNK),status indicator(STS),result indicator (OK/NG)

Dimension

65.2 mm×65.2mm×47.2mm

Weight

Approx. 280 g (0.6 lb.)

Seal

IP67

Operating  Temp.

0℃~+50℃

Storage  Temp.

-30℃~+70℃

Humidity

20% to 95% RH,non-condensing

Regulatory

CE,FCC.RoHS
