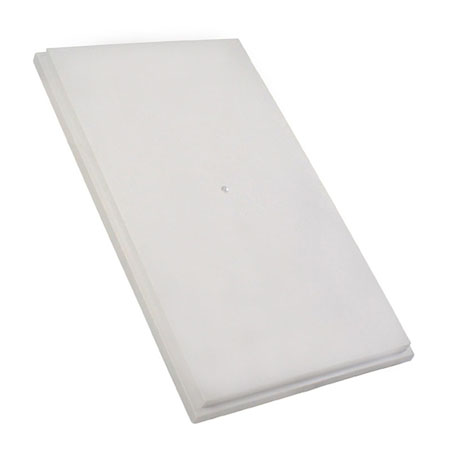

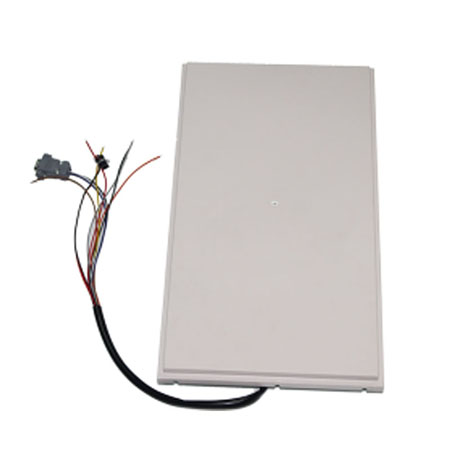

SM-8288A Long Range Fixed UHF RFID Reader

Share :
  • Product Description
  • Product Parameters
  • Download

Description:

SM-8288A RFID reader could be applied in various harsh working environment for multiple protocol compatible and reading fast. Full support the tag of ISO-18000-6C or ISO-18000-6B. Its stable reading distance is 15m (related to the tag and environment), it has a beautiful shape.

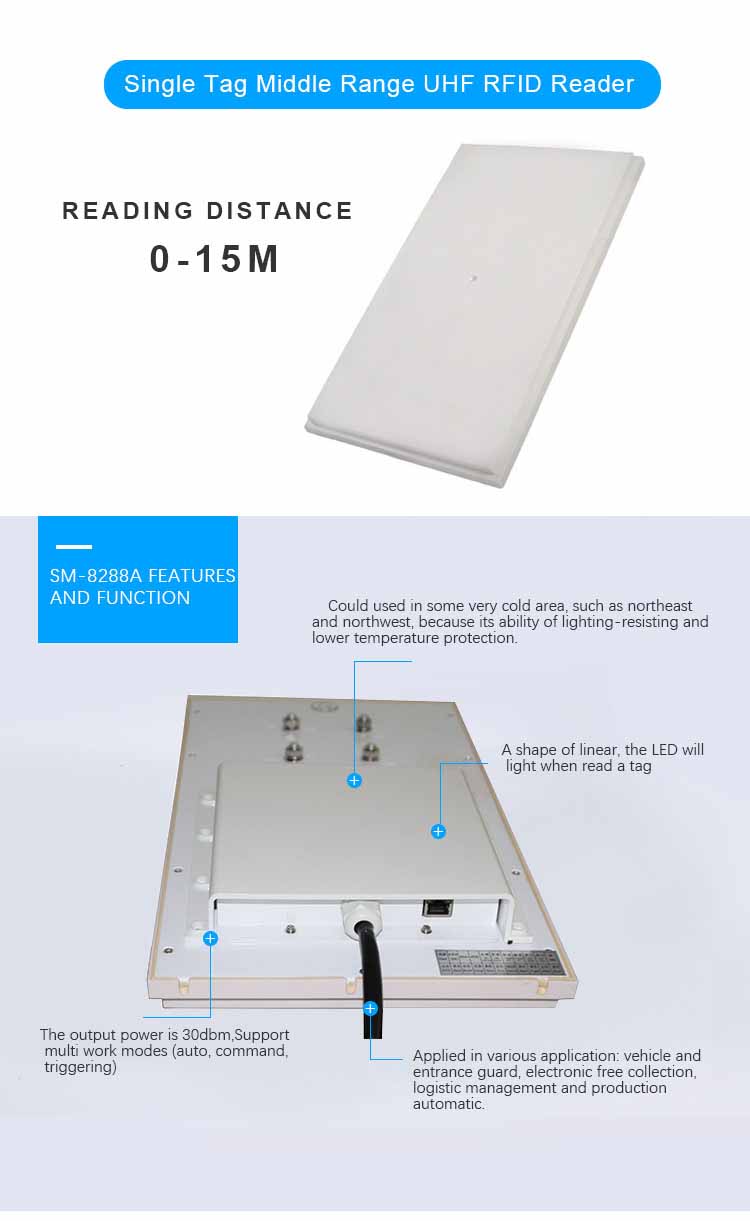

Fixed UHF RFID Reader Features:

1. A shape of linear, the LED will light when read a tag.

2. Could used in some very cold area, such as northeast and northwest, because its ability of lighting-resisting and lower temperature protection.

3. The output power is 30dbm, support multi work modes (auto, command, triggering).

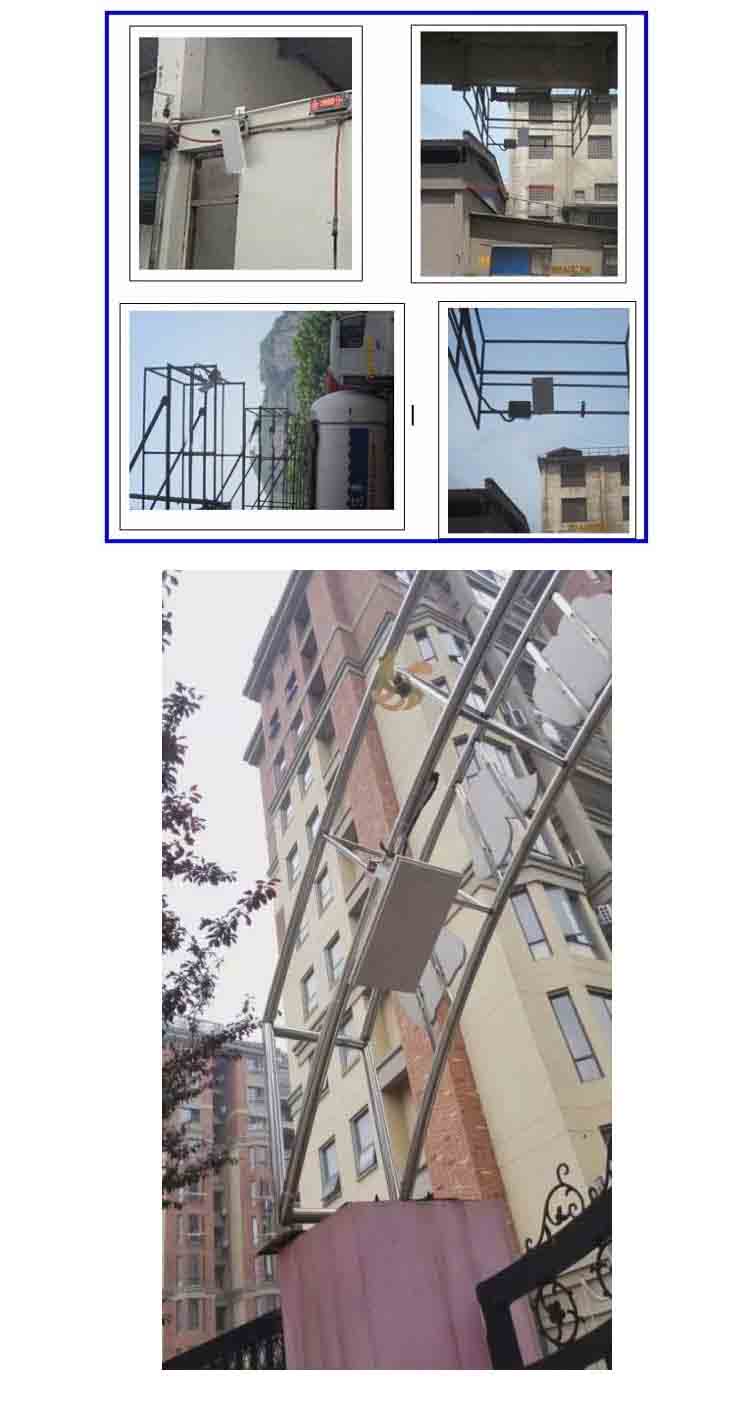

4. Applied in various application: vehicle and entrance guard, electronic free collection, logistic management and production automatic.

5. Can connect with the device which has W26 and W34 interface, no need to develop.

6. Wake up tags: tag only be waked up when communicate with reader, prevent the disturbing from other tags, ensure the correct information between reader and system's tag.


Mainly Application as Follows:

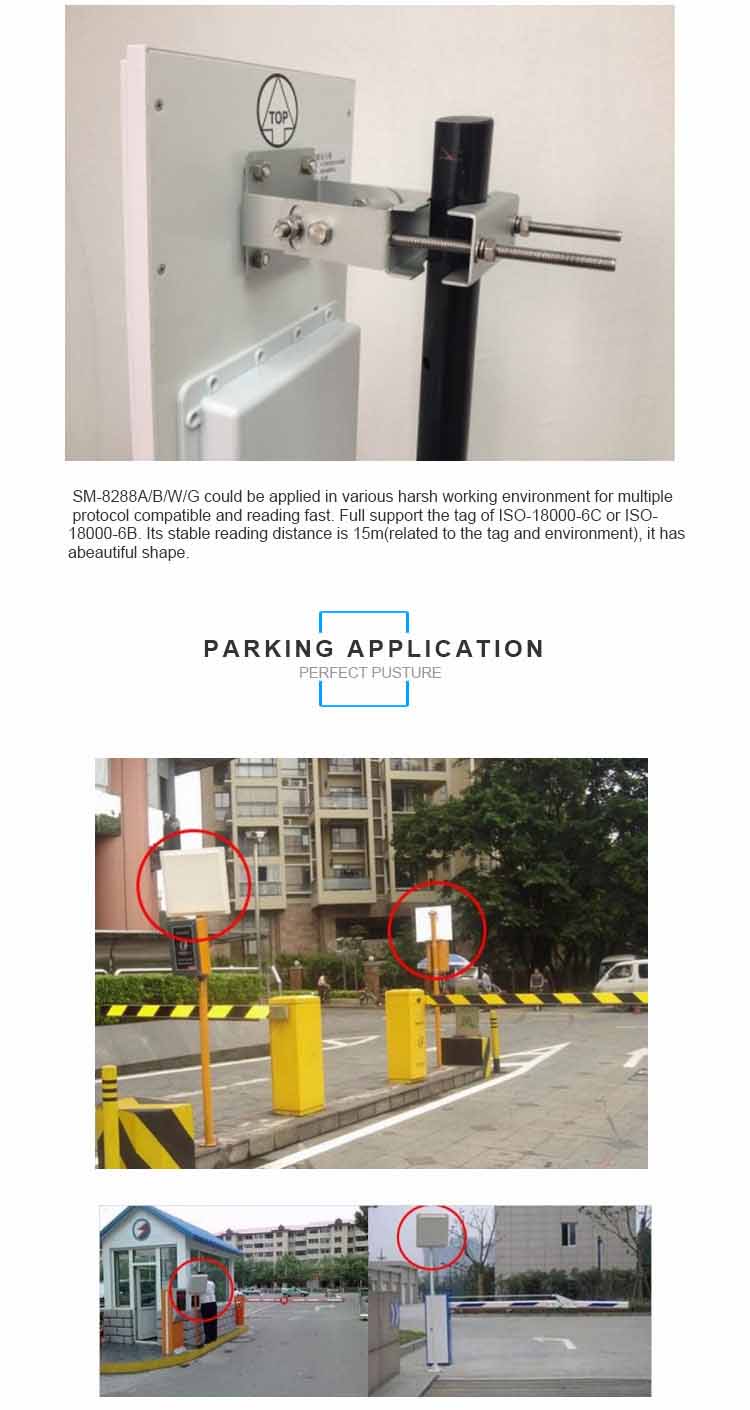

1. Parking management: Long range intelligent parking management and automatic charge without stop the car.

2. Production line management: Goods identification for production flow.

3. Auto Access control: Long range access control management for custom, sea port.

4. Logistics and warehouse management.

5. People auto registry for important meeting or exhibition.

6. Automatic weighing and data capture.


SM-8288A Long Range Fixed UHF RFID ReaderSM-8288A Long Range Fixed UHF RFID ReaderSM-8288A Long Range Fixed UHF RFID ReaderSM-8288A Long Range Fixed UHF RFID ReaderSM-8288A Long Range Fixed UHF RFID ReaderSM-8288A Long Range Fixed UHF RFID Reader


Performance parameters
Working Frequency902~928 MHz or 865~868MHz
ProtocolISO18000-6C(EPC C1 GEN2)
Radio frequency power0dBm~30dBm(Adjustable)
Software & SDKDEMO and C#, VC, VB, Java, DELPH, etc.,
EncryptionCan be directly encrypted, copy prevention.
Reading rangestable reading range 12~15M (Depends on tag&environment)
Industrial lightning protection6000V industrial lightning protection
Low temperature protectionNortheast, Northwest extremely cold region, low temperature protection
Frequency modulation wayBroad spectrum frequency hopping or fixed frequency

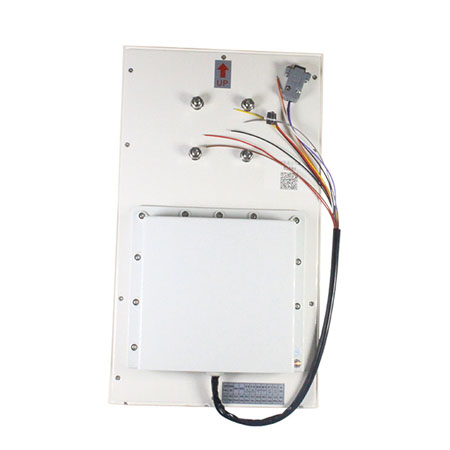

Input/output portTwo-way relay output(customized), one-way trigger input
Antenna gain10dBi polarization
Working wayBuzzer & LED
Power12V/3A Adaptor
Physical parameters

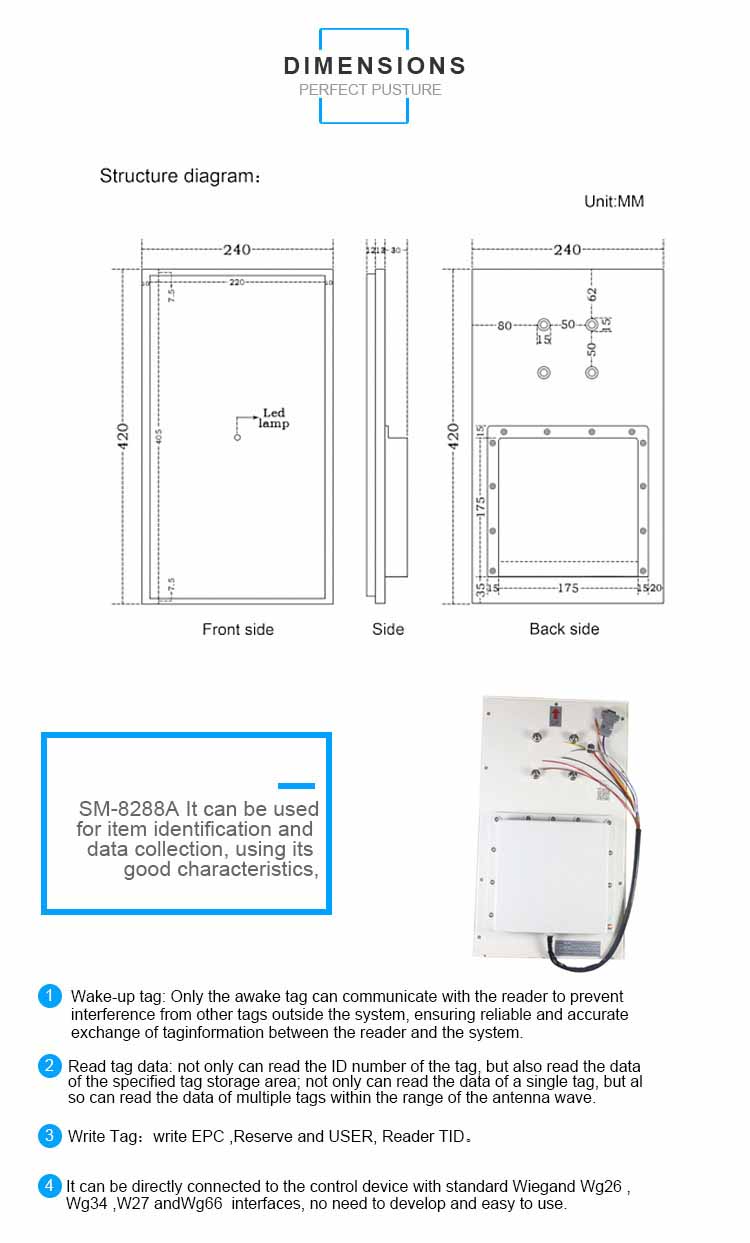

Item size420x240x50mm

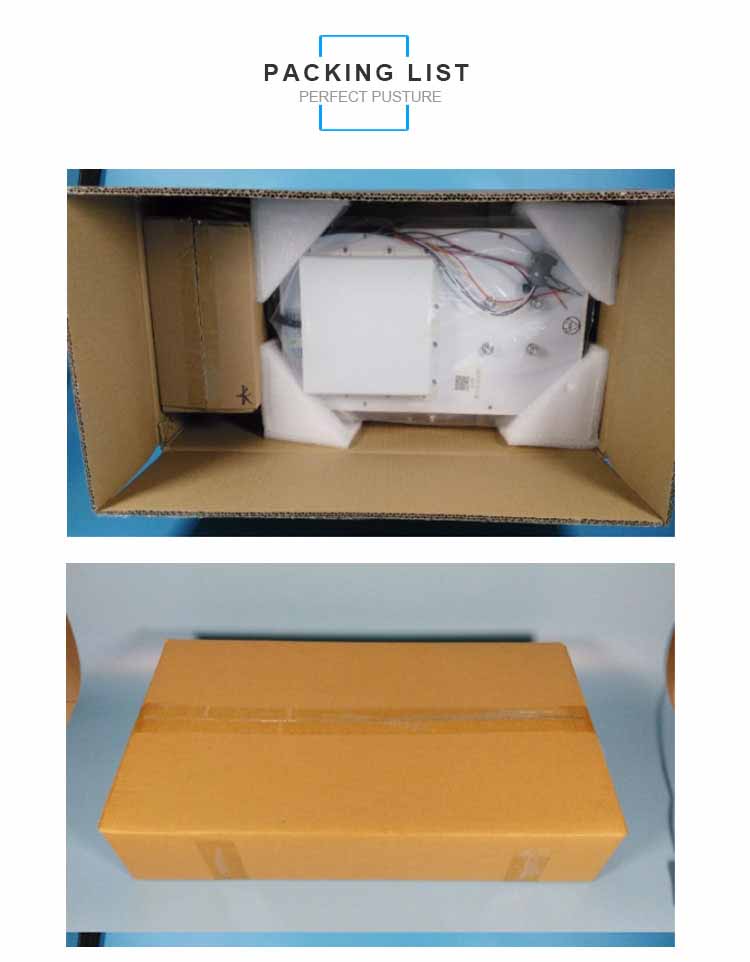

Package size600x310x110mm
Net weight4KG
Shell materialABS
Working temperature-20℃~+65℃
Storage temperature-45℃~+95℃
