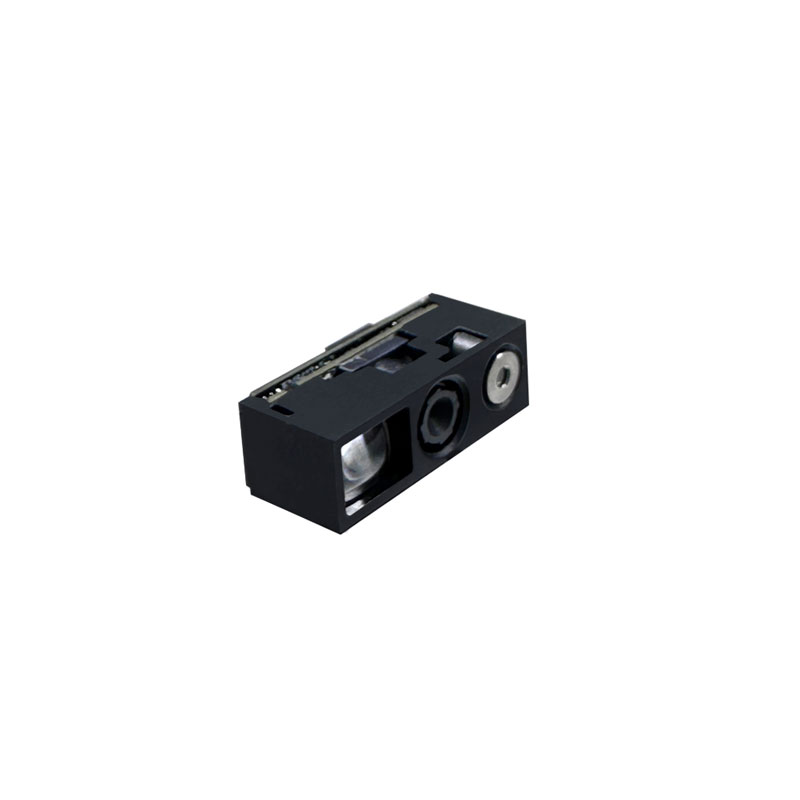

Discover the AV2097T Barcode Reading Engine, a cutting-edge scanning solution designed for superior performance and versatility. Featuring advanced decoding technology, a clear aiming mode, and low power consumption, this compact device is perfect for various applications, including FDA devices, tablets, and self-service kiosks. With its high integration and green technology, the AV2097T ensures efficient and accurate barcode scanning in any environment.
Barcode Scanning Solutions Features:
1. Outstanding Barcode Scanning Performance: Utilizes self-developed core decoding technology for quick and accurate recognition of various barcode qualities.
2. Clear Aiming Mode: Provides a clear laser crosshair, ensuring precise scanning even in bright sunlight.
3. High Integration: Combines decoder board and camera into one compact design, ideal for miniaturization applications.
Performance Parameter | ||

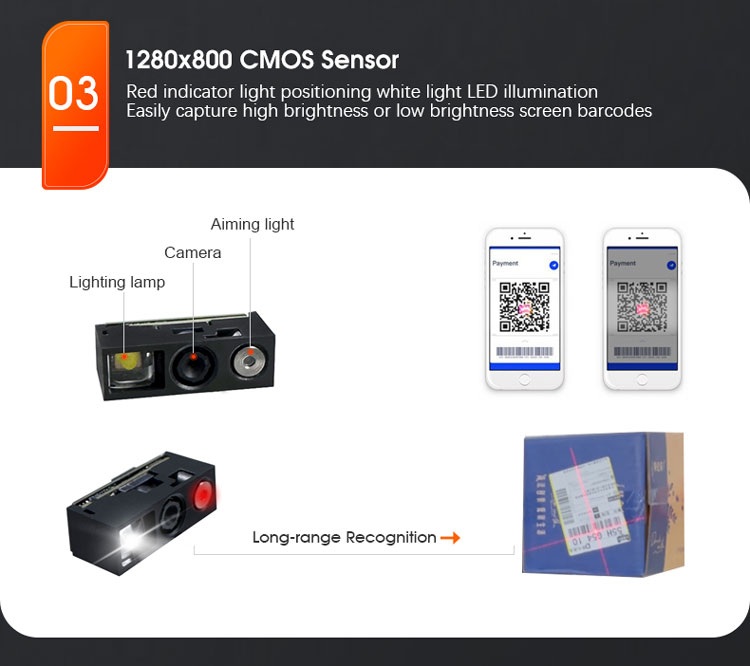

Imaging sensor | 1280x800, global shutter | |
Reading accuracy | 3 mil | |
Field of view | Level 39, vertical 26 | |
Symbolizes | 2D
1D | QR code: QR, Data matrix, PDF417, Micro QR, Micro PDF417, Hanxin, GridMatrix, Azt ec, Maxi code, GS1QR, GS1 Data matrix, GS1Combosite(CC-A/CC-B/CC-C) One-dimensional code:Code128, Code39, Code39 full ascii, Trioptic Code39, Code 32, Co de93, UPC- A, UPC-E, UPC-E1, UPC-E+, UPC-A+, EAN8/JAN8, EAN13/ JAN13, BooklandEAN/ISBN, Interleaved 2 of5, Ma trix 2 of 5, Industrial 2 of5, Chinese 2 of5, Codebar, Code 11, MSI, ISBT, GS1 -128, GS1 Databar14, GS1 Databar Li mited, GS1Databar Expanded, postal code of various countries |
Typical depth of field recognition | 3.3mil CODE39:10~20cm 5mil CODE39 ：7cm~32cm 13mil EAN13 ：5cm~72cm 15mil QR ：3cm 40cm 10mil Data Matrix ：8~28cm 6.7mil PDF417 ：9.5cm~27cm | |
Reading Angle | Rotation360°, tilt:±60°, deviation:±60° | |
Symbol contrast | ≥10% | |
Spotlights | Illumination Light | |
Spot the light | Aiming Light | |
Live screenshot | Support button triggering | |
Mechanical/electrical parameters | ||
Communication interface | UART 3.3V, USB HID, USB virtual serial port | |

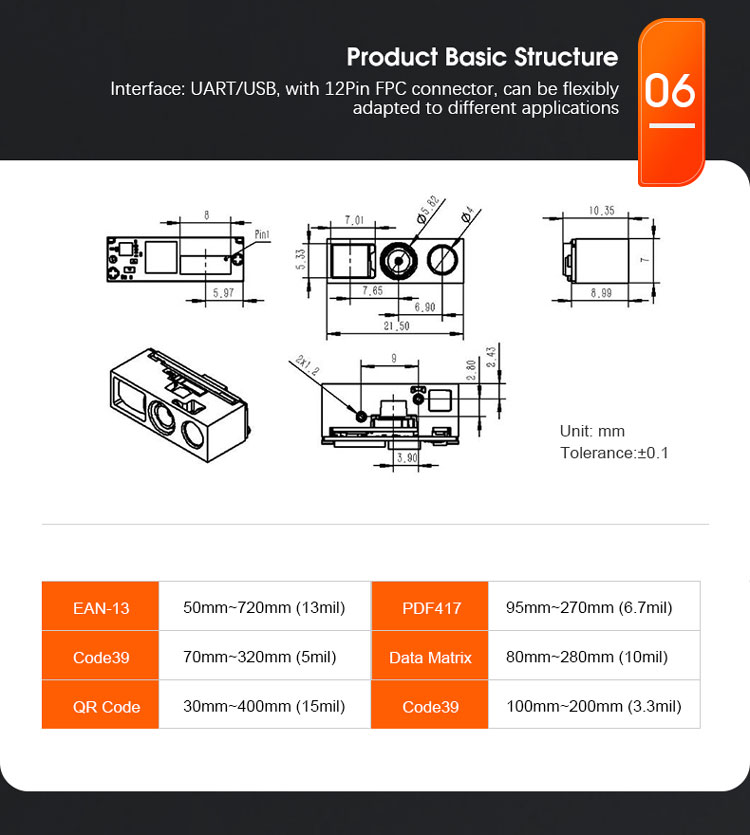

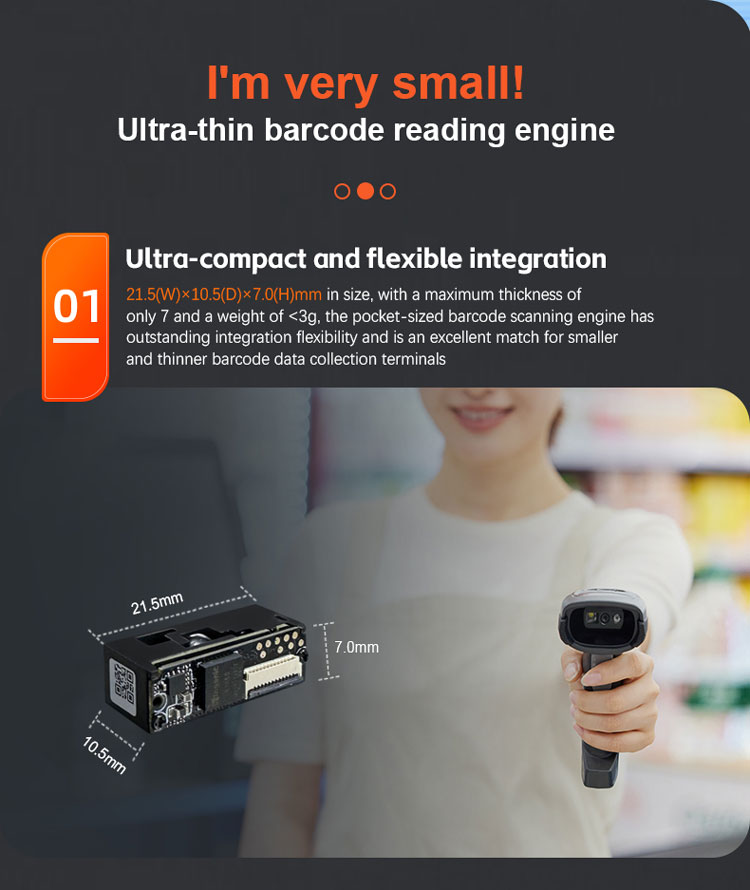

Appearance size | 21.5mmx7mmx10.5mm (length x width x depth) | |
Weight | <3g | |
Prompting mode | LED, buzzer signal output | |
Working voltage | 3.2~3.6V | |
power dissipation | working current: 280mA@3.3V (scanning status, average current) 40mA@3.3V (standby status, not open USB)45mA@3.3V (standby status, open USB) | |
Environmental Parameter | ||
Working temperature | -20~65℃ | |
Storage temperature | -40~70℃ | |
Working humidity | 5~95%(no condensation) | |
Environmental lighting | 0~ 100,000LUX | |
